Computational Fluid Dynamics (CFD) offers powerful tools to simulate complex flow and heat transfer phenomena. One effective technique is periodicity, particularly for cases with a low Reynolds number and high Péclet number, as highlighted in COMSOL’s approach to microfluidic systems. Inspired by this methodology, we explored periodicity in two different applications: fuel cell simulations and cooling fin designs for electronic and battery thermal management.
1. Applying Periodicity in Fuel Cell Simulations
Fuel cells involve intricate gas flow dynamics where reactant gases undergo electrochemical reactions, producing new species and heat. Capturing these effects over a large domain can be computationally expensive. Instead, by leveraging periodicity, we can significantly reduce computational demands while maintaining solution accuracy.
Key Considerations
- Species Transport in Anode & Cathode Channels: Reactions generate new species that must be accounted for in the periodic solution. Convection dominates over diffusion in these channels, making periodicity a suitable modeling approach.
- Heat Generation in Reacting Flow: Electrochemical reactions contribute to heat generation, though this is not explicitly modeled in the current setup.
- Temperature in Coolant Channels: A separate set of flow channels models temperature effects, assuming a constant heat flux at coolant boundaries.

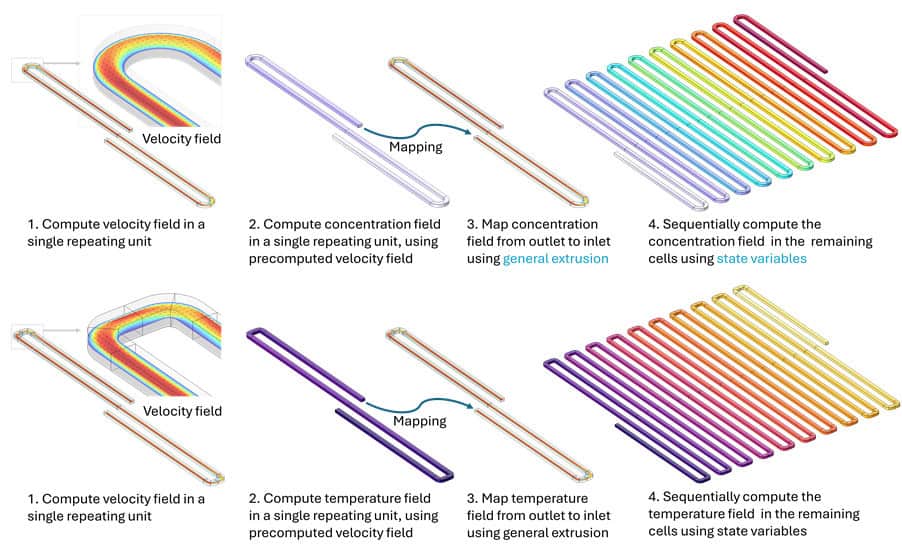

The workflow is explained in Figure 1. This approach allows for efficient fuel cell simulations without requiring a fully resolved large-scale model. Since the velocity profile is computed once, it is reused for all iterations when solving for concentration and temperature, reducing computational overhead. The high Péclet number ensures that convection-driven transport is accurately captured without requiring excessive computational resources.
2. Periodicity in Cooling Fins for Battery & Electronic Cooling
Another application of periodicity arises in thermal management of batteries and electronics. When air flows over a series of cooling fins, the flow pattern stabilizes after a few units, making periodic modeling an ideal choice. Here, we also model the velocity field using periodicity, assuming that the flow in a repeating unit cell remains unaffected by downstream phenomena.
Key Considerations
- Developed Flow: The airflow stabilizes after passing through a few fins, aligning with the periodicity assumption.
- Constant Heat Generation: Heat is applied at the fin boundaries, assuming steady power dissipation.
- Convective Cooling: Air removes heat as it passes through the fins, and periodicity allows for efficient modeling of this process without simulating the entire system.
Why Use Periodicity?
The periodicity approach provides several benefits in these applications:
- Computational Efficiency: Simulating a small unit cell instead of a full-scale domain significantly reduces computational time and memory usage.
- Resource Optimization: By solving the velocity profile once and reusing it for species and temperature calculations, we streamline simulations without sacrificing key physical insights.
- Versatility: This method applies to fuel cells, cooling systems, and other engineering scenarios where flow stabilizes over repeating units.
Final Thoughts
For industries focusing on green energy, advanced engineering, and CFD-driven design, periodicity can be a utilized. By efficiently modeling repeating geometries, we can accelerate design processes, reduce computational costs, and streamline large-scale simulations. Whether simulating species transport in fuel cells or optimizing cooling fins for thermal management, periodicity provides a robust approach to solving complex CFD problems efficiently.
