Radically different speaker design

Challenge and Ambition

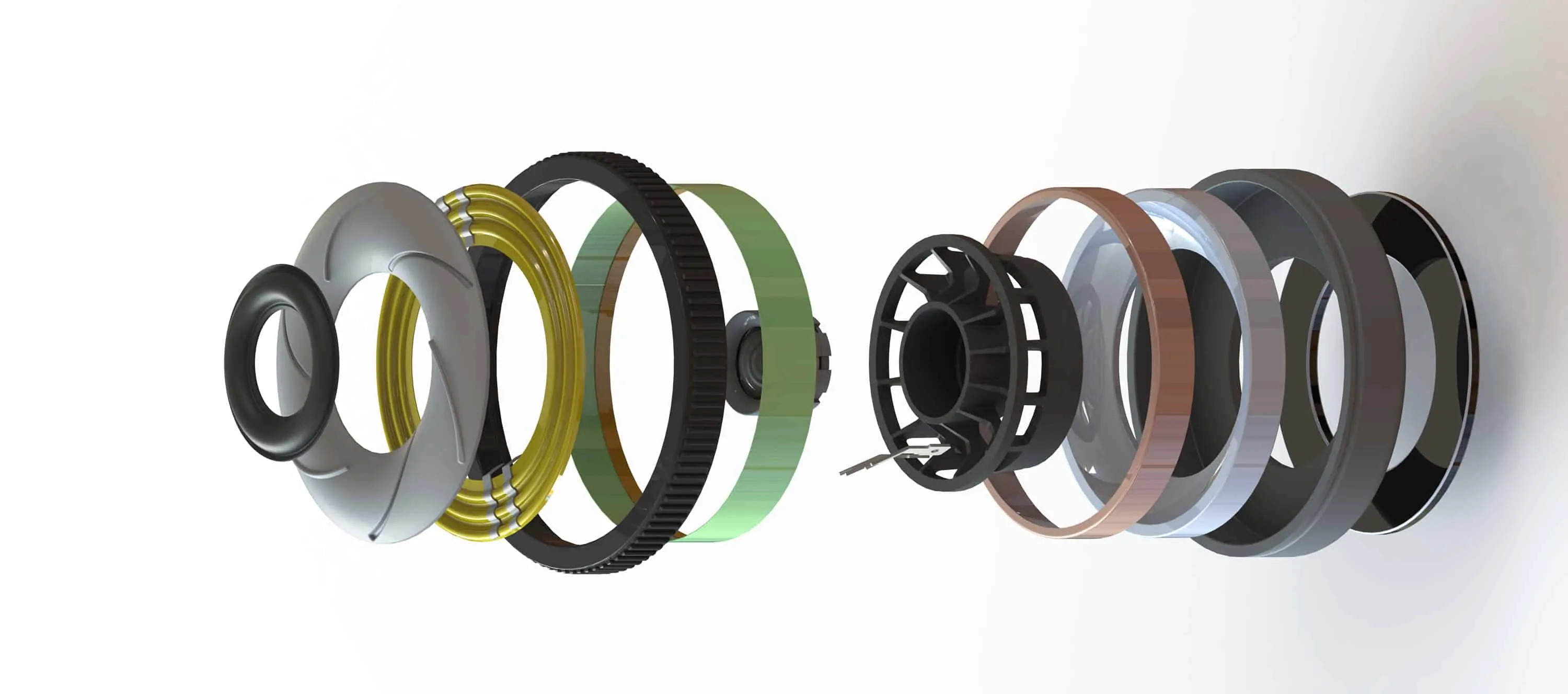

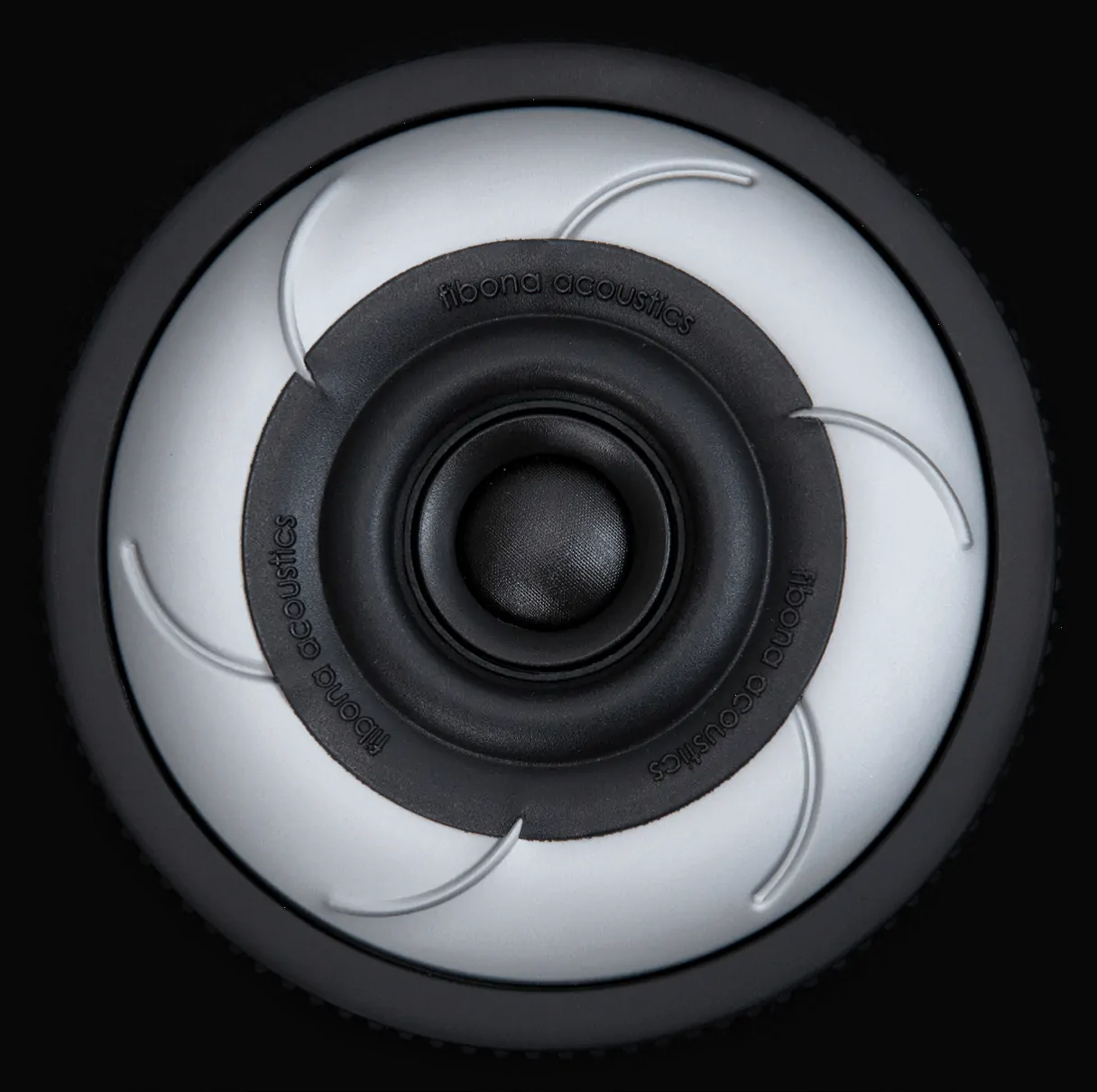

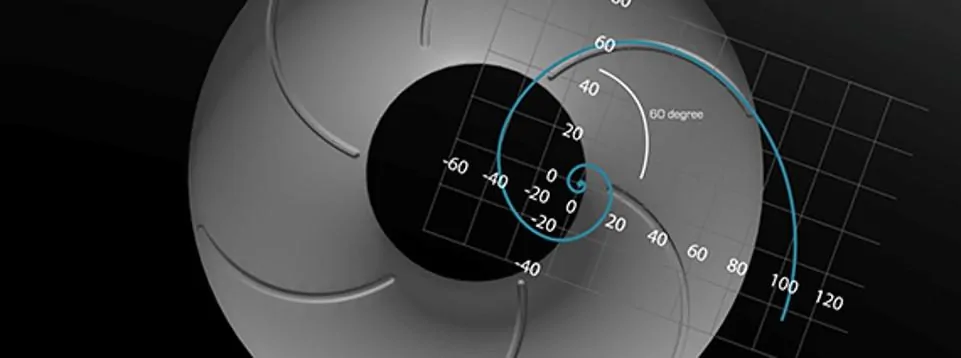

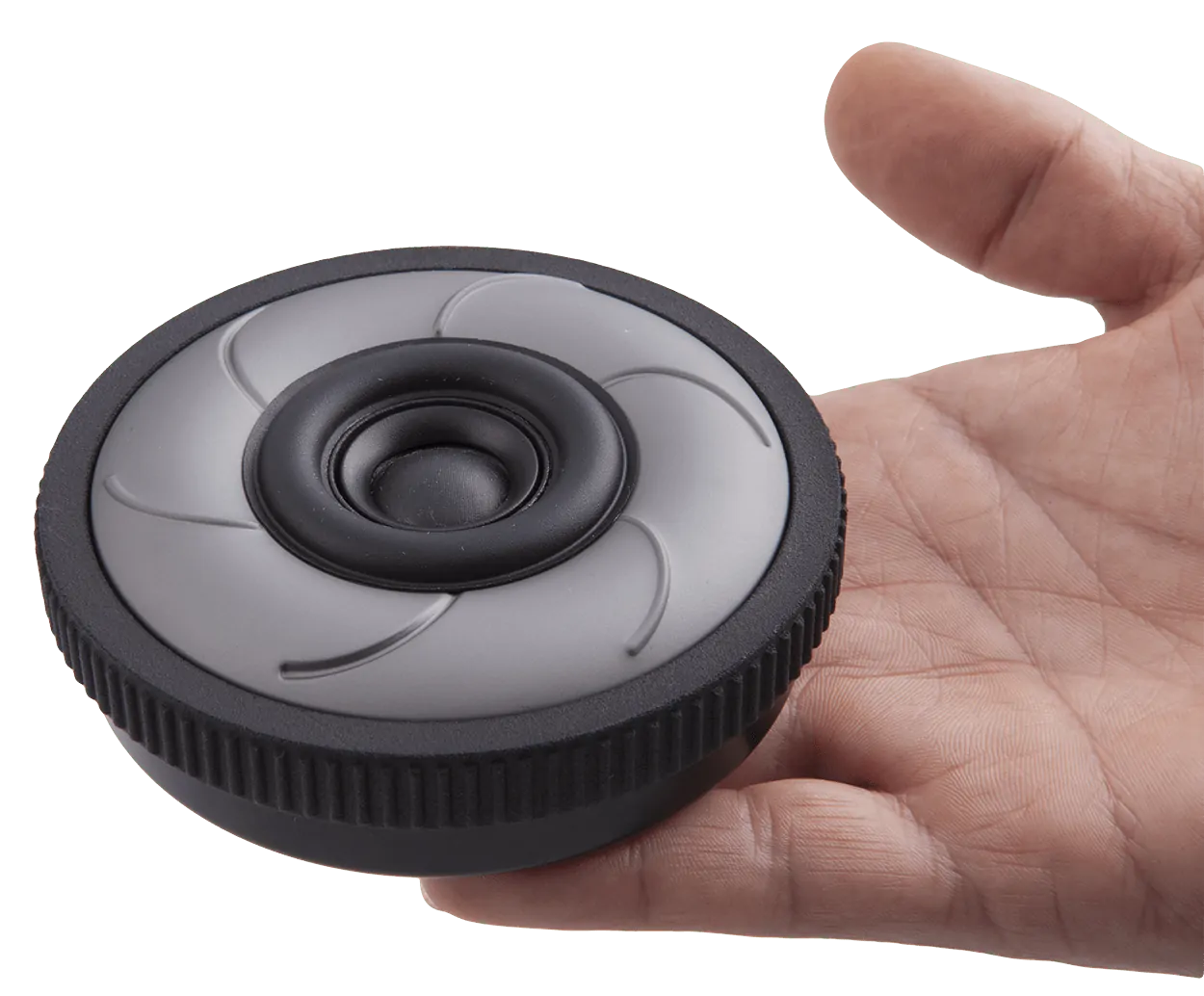

Fibona Acoustics were developing a new speaker with a radically different design. Rather than the typical cone-shaped diaphragm, stiffening indentations were employed to provide a shallow diaphragm, resulting in a system with a very low overall height.

Predicting the dynamic behavior of this new diaphragm design, was crucial to optimize the thickness and indentation configuration.

Solution

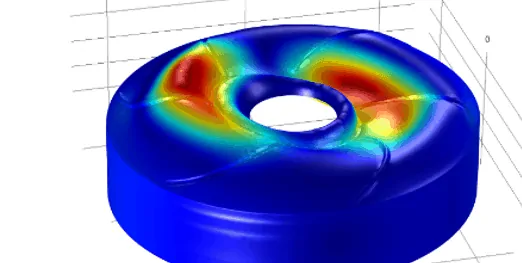

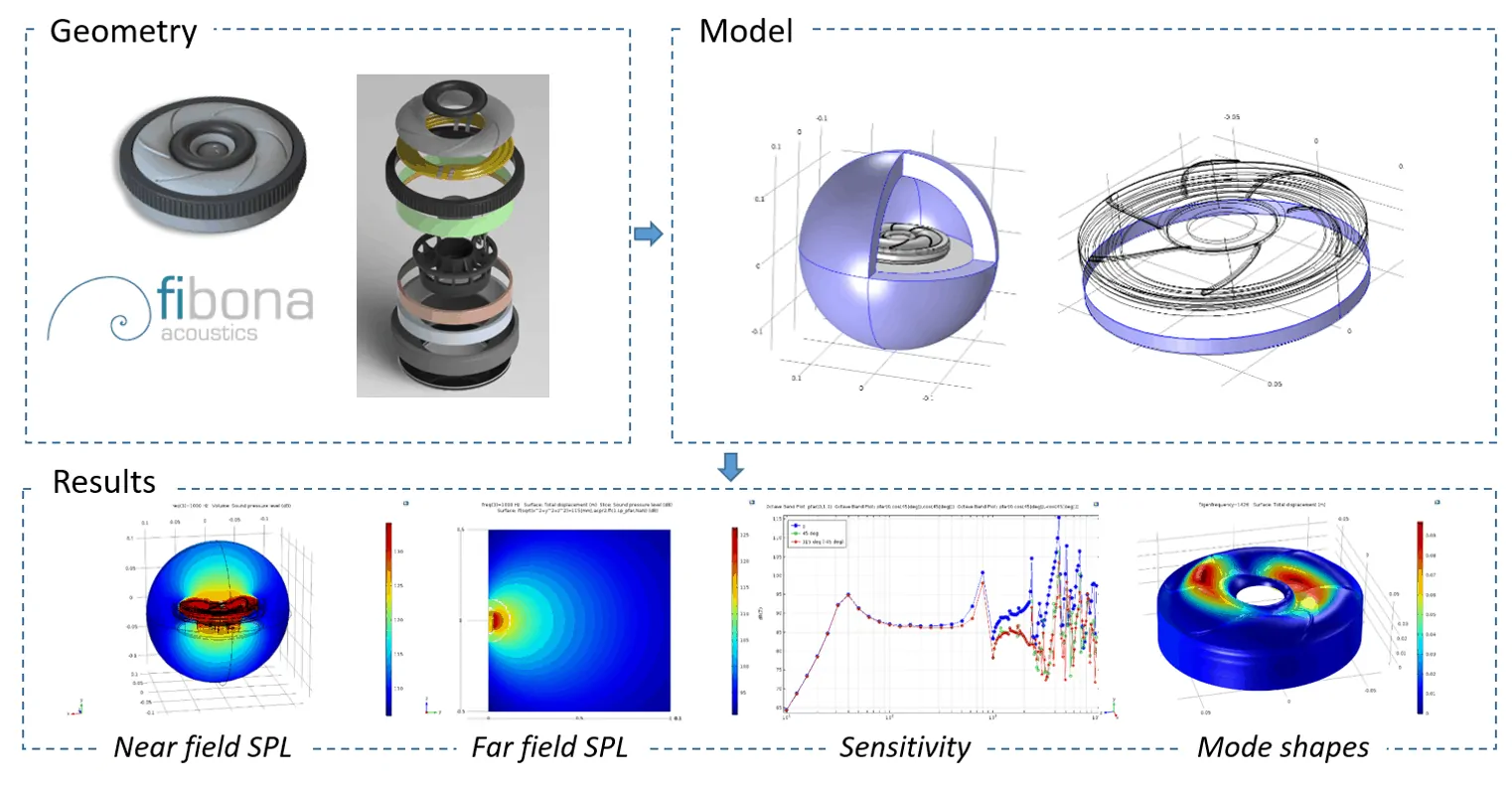

Initially an eigenfrequency study yielded insight into the modes seen in the diaphragm.

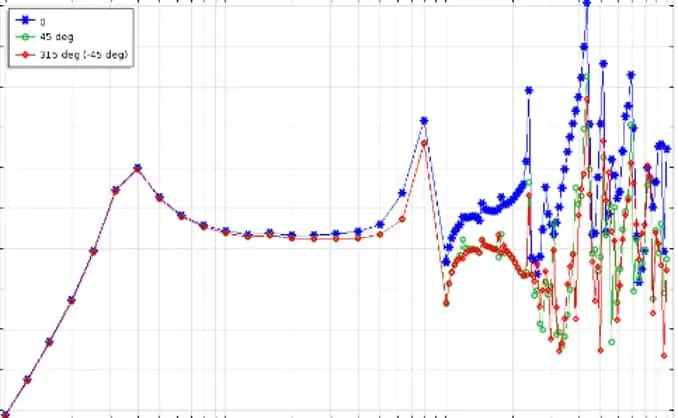

A vibro-acoustic analysis was then used to study the frequency response of the system, giving detailed insight into resonances etc.

Customer: Fibona Acoustic

Industry: Sound&Hearing

“I very much appreciated resolvent’s qualified approach to the task”
Milad Kahfizadeh, CEO
